Bus Wiper Assembly Series

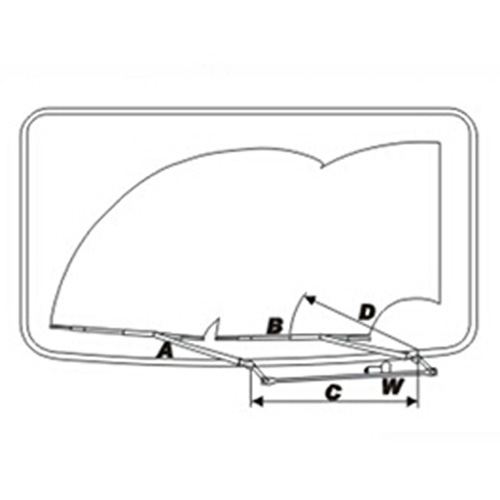

Oedered Wiper Assembly Installing Drawing KG-007
|
Oedered Wiper Assembly KG-007 |
||||
|
A |
Wiper Arm |
Model |
GB-06 |
|
|
Size |
700-650mm |
|||
|
B |
Wiper Blade |
Size |
700-600mm |
|
|
C |
Centre Distance of Wiper Linkage |
Model |
LG-005 |
|
|
Size |
810-710mm |
|||
|
D |
Sweep angle |
∠ 90°/95°max |
||
|
W |
Motor |
Model |
ZD2633 ZD2632 |
|
|
Wheel Gear |
42 |
|||
|
Wetting Angle |
φ70、72mm |
|||
|
Power and volts |
80w 12v 80w 24v |
|||
|
Connector |
Customized |
|||
|
Washer |
1.5L |
|||
