KG-005 Overlapped Wiper Assembly
Bus Wiper Assembly Series

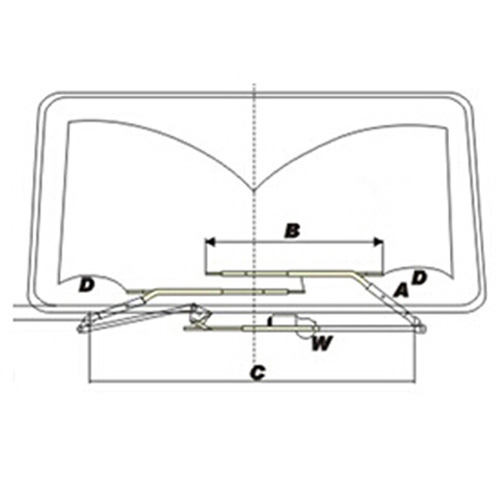

Overlapped Wiper Assembly Installing Drawing KG-005
|
Overlapped Wiper Assembly KG-005 |
||||
|
A |
Wiper Arm |
Model |
GB-05 |
|
|
Size |
750-630mm |
|||
|
B |
Wiper Blade |
Size |
800-700mm |
|
|
C |
Centre Distance of Wiper Linkage |
Model |
LG-003 |
|
|
Size |
1720-1420mm |
|||
|
D |
Sweep angle |
∠ 80°/90°max |
||
|
W |
Motor |
Model |
ZD2732 |
|
|
Wheel Gear |
40\60\70 |
|||
|
Wetting Angle |
φ72、90mm |
|||
|
Power and volts |
130w 12v 130w 24v |
|||
|
Connector |
Customized |
|||
|
Washer |
2L |
|||
