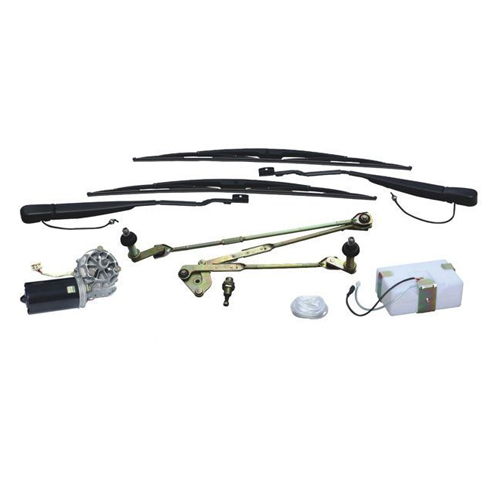

KG-001 Overlapped Wiper Assembly
Bus Wiper Assembly Series

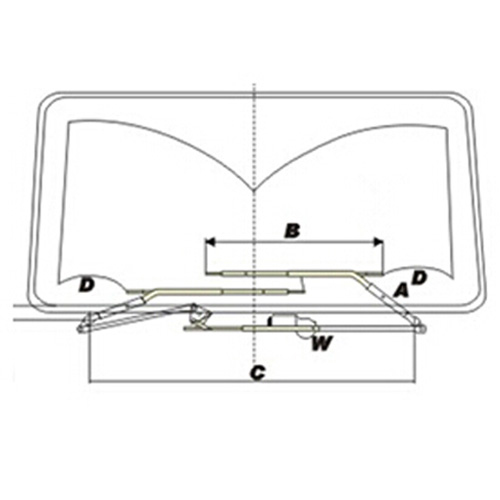

Overlapped Wiper Assembly Installing Drawing KG-001
|
Overlapped Wiper Assembly KG-001 |
|||||
|
A |
Wiper Arm |
Model |
GB-01 |
||
|
Size |
850-750mm |
||||
|
B |
Wiper Blade |
Size |
1000-900mm |
||
|
C |
Centre Distance of Wiper Linkage |
Model |
LG-001 |
||
|
Size |
1980-1720mm |
||||
|
D |
Sweep angle |
∠ 80°/90°max |
|||
|
W |
Motor |
Model |
ZD2735 |
||
|
Wheel Gear |
39\60\70 |
||||
|
Wetting Angle |
φ90mm |
||||
|
Power and volts |
180w 12v 180w 24v |
||||
|
Connector |
Customized |
||||
|
Washer |
3.5L |
||||
